How do I create a custom soil texture?

How do I create a custom soil texture?

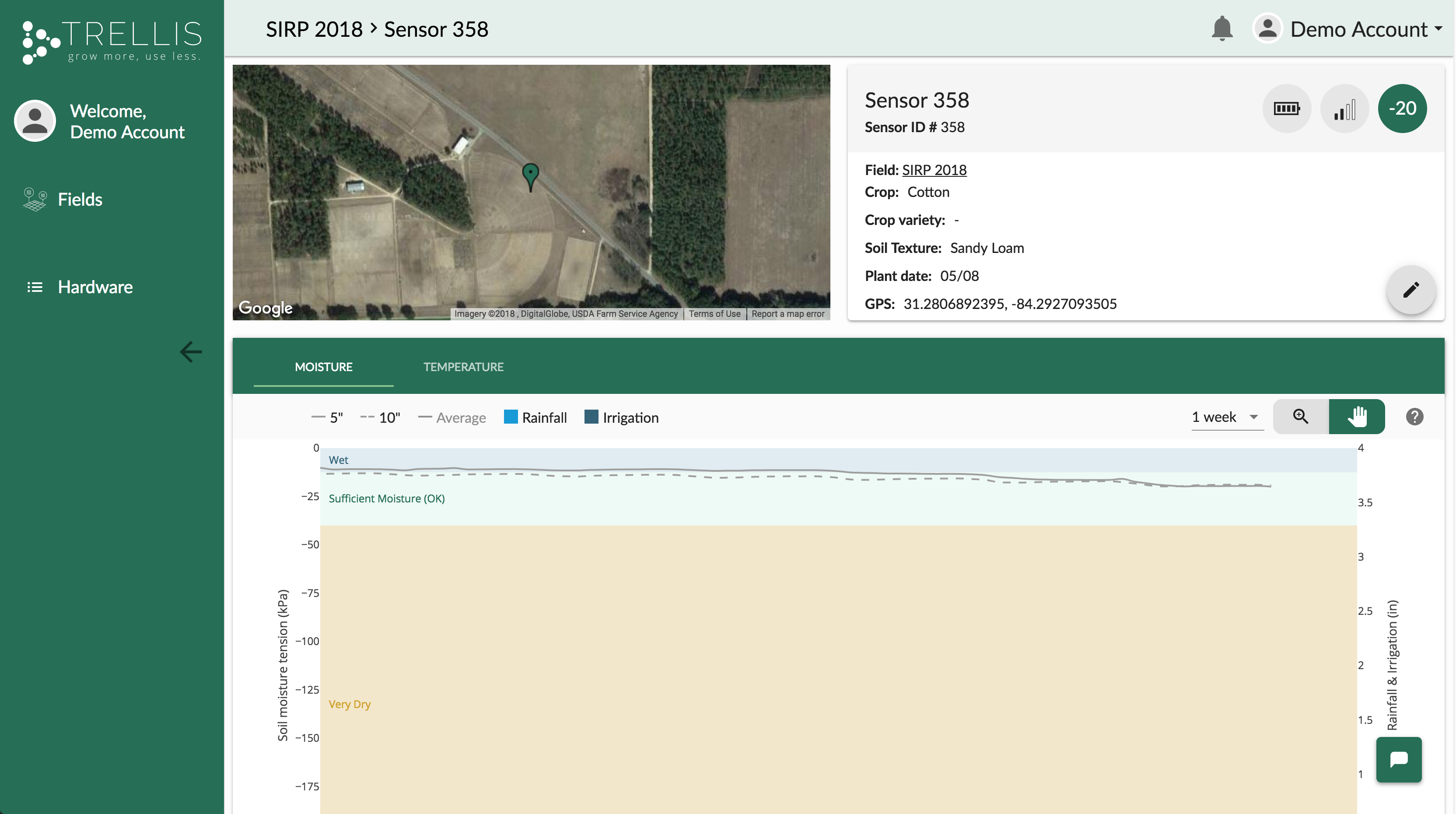

Navigate to the sensor page where you'd like to create a custom soil type:



Click the pencil icon to edit your sensor information:

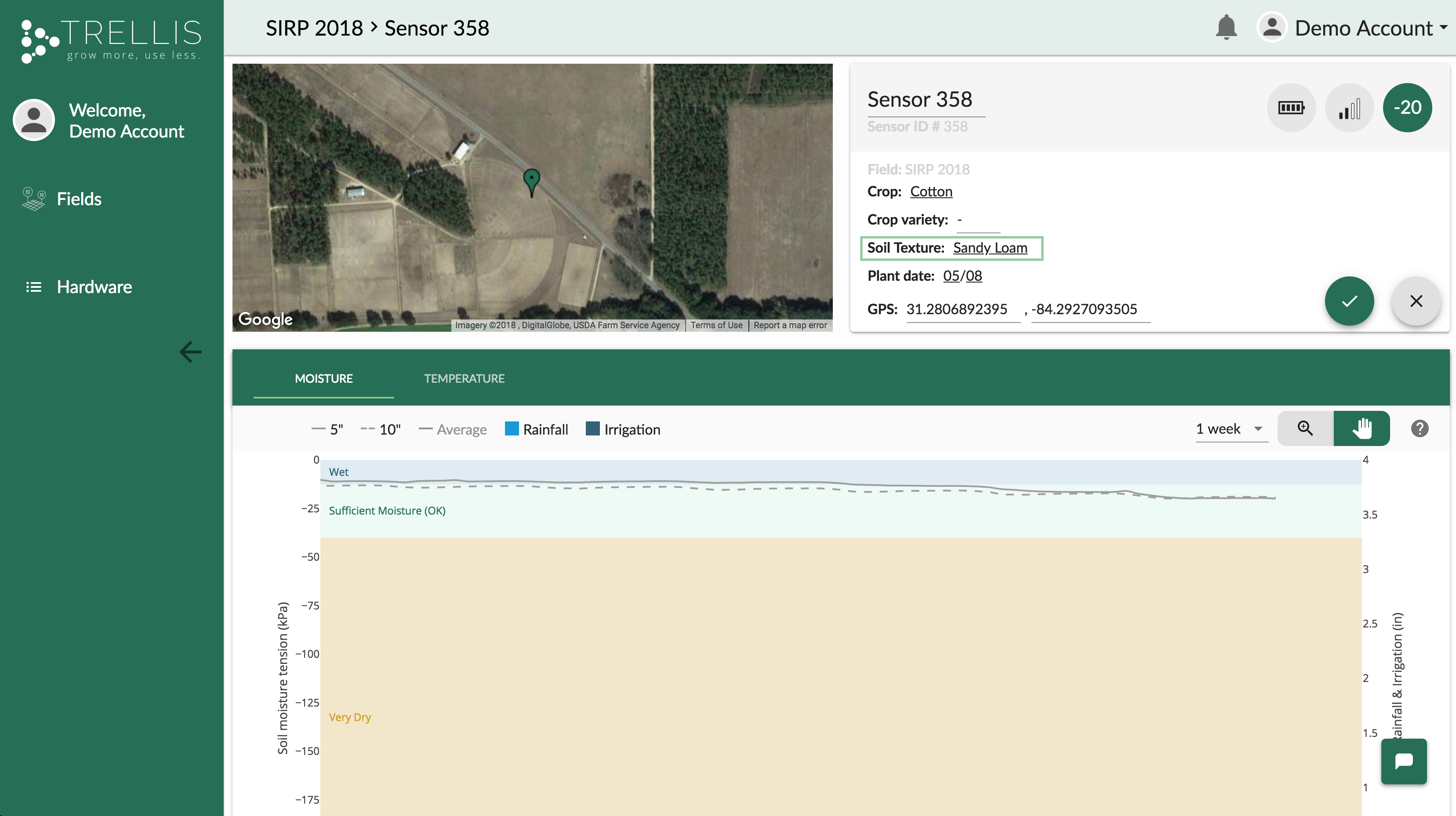

Click your current soil texture (see green rectangle below):



A new window will pop-up. Click "Add New" (see green rectangle below) to add a new soil texture:

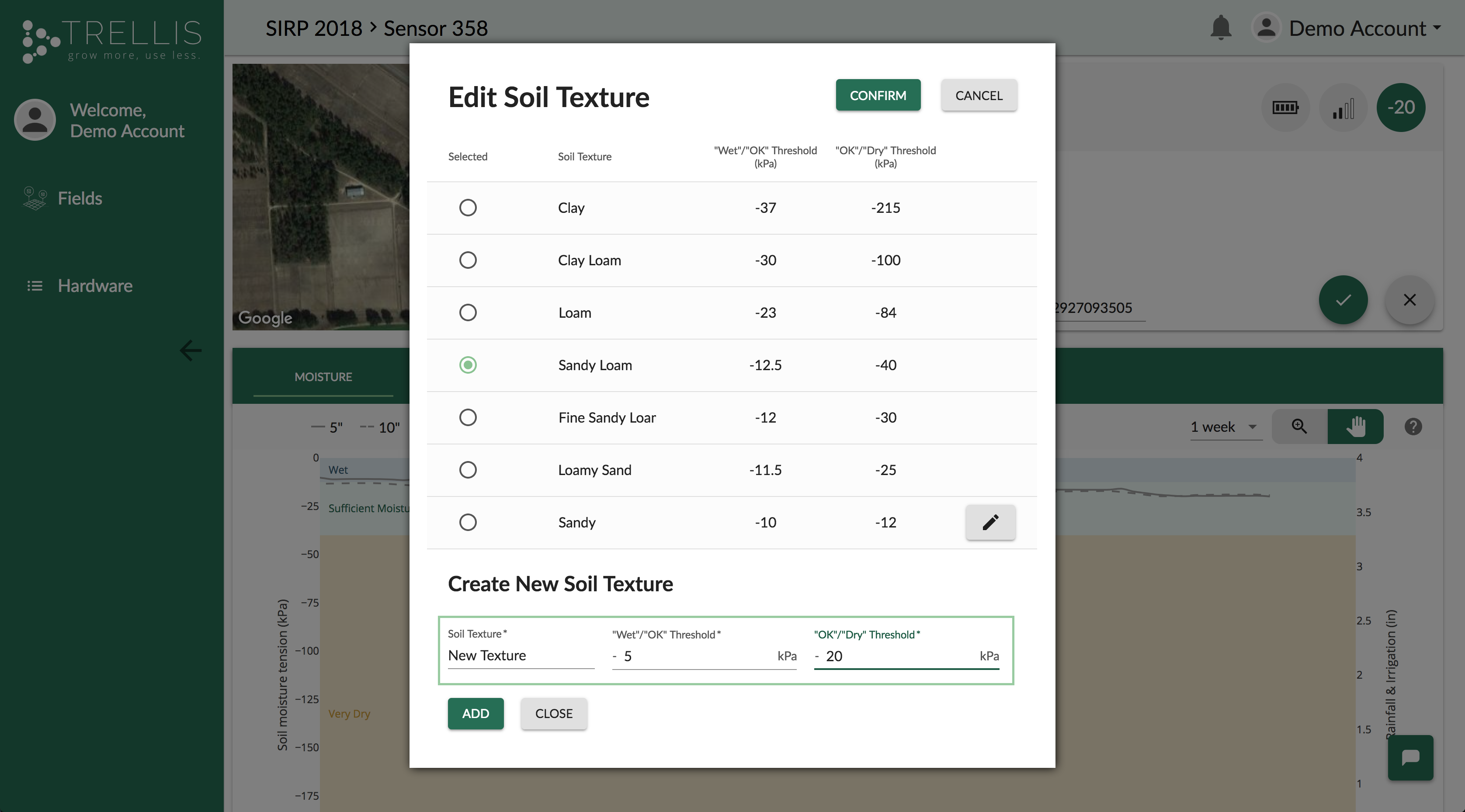

Enter the name of the new soil texture ("New Texture" in the example below), as well as the "Wet"/"OK" threshold and the "OK"/"Dry" threshold.



Click "Add" to add the new soil texture.

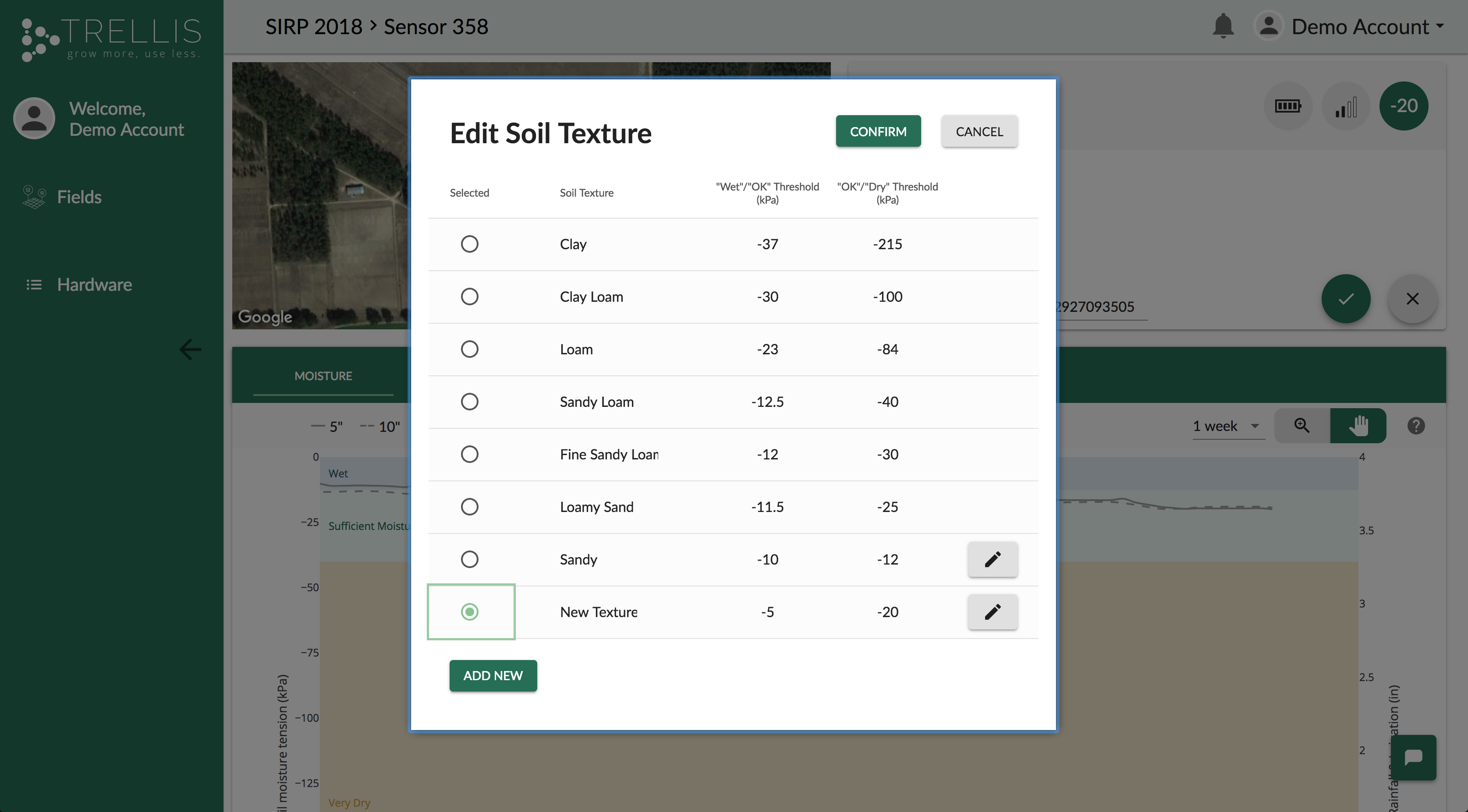

To select the new soil texture, click the circle next to it in the table (see green rectangle below):



Click "Confirm" to save your selection:



Your new soil texture will show up in the Sensor Summary section. Click the green checkmark to save your changes:

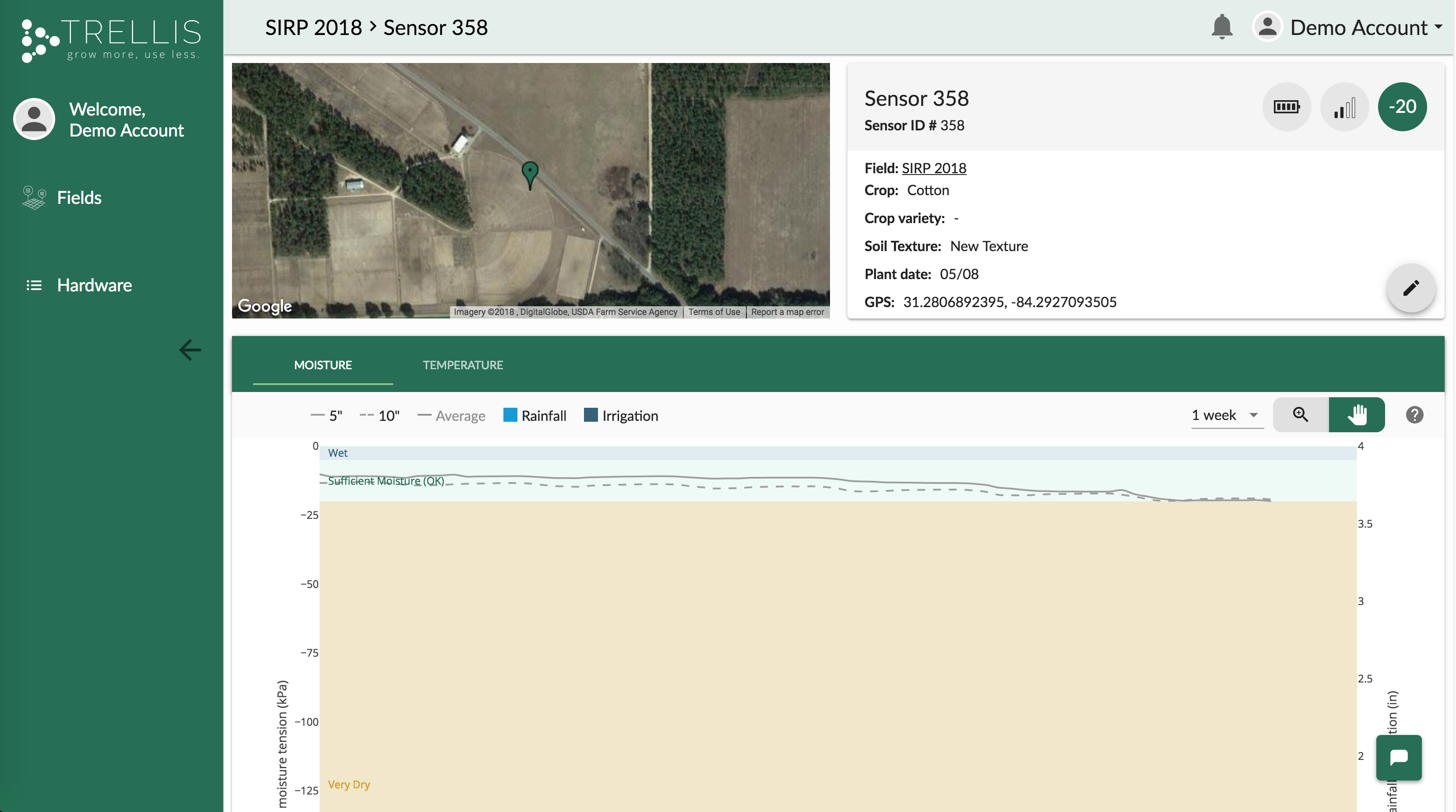

That's it! You'll notice the soil moisture chart will change to reflect the new thresholds. In this example, the Wet range is from 0 kPa to -5 kPa, the OK range is from -5 kPa to -20 kPa, and the Dry range is -20 kPa and below.
